DT系列脫硫漿液循環泵特點：
高效節能
抗磨耐腐
振動小、噪音低
運行可靠
維修方便
使用壽命長
輸送漿液各參數最大值
漿液中氯離子含量最高可達60000ppm
漿液中的PH值允許在2.5~13之間
漿液溫度≤65℃
漿液重量濃度Cw最高可達60%

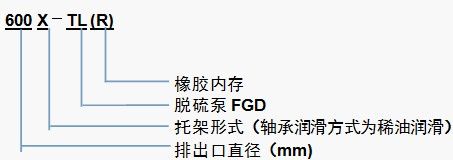

DT系列脫硫漿液循環泵型號意義舉例
|
型 號
TYPE |
轉 速 Speed n (r/min) |
流 量 Capacity Q (m3/h) |
揚 程 Head H (m) |
軸 功 率 ShaftPower P (Kw) |
效 率 Efficiency η （%） |
配套電機 |
|
|
型 號 TYPE |
功率/電壓 KW/V |
||||||
|
900DT-F110 |
490 |
8015 11134 14076 |
32.7 29.0 22.6 |
915.9 995.4 1010.5 |
77.9 88.3 85.7 |
YKK560-4 YKK560-4 YKK560-4 |
1250/6000 1250/6000 1250/6000 |
|
800DT-A90 |
595 |
6104 9170 10690 |
27.8 22.6 17.3 |
619.2 653.0 645.4 |
74.6 86.4 78.0 |
YKK630-10 YKK630-10 YKK630-10 |
800/6000 900/6000 900/6000 |
|
496 |
5088 7644 8911 |
19.3 15.7 12.0 |
358.3 378.1 373.2 |
74.6 86.4 78.0 |
YKK560-12 YKK560-12 YKK560-12 |
450/6000 500/6000 500/6000 |
|
|
700DT-A90 |
595 |
5281 7508 8988 |
33.8 28.3 22.2 |
623.0 667.1 671.4 |
78.0 86.7 80.9 |
YKK630-10 YKK630-10 YKK630-10 |
800/6000 900/6000 900/6000 |
|
496 |
4402 6259 7493 |
23.5 19.7 15.4 |
361.0 387.1 388.3 |
78.0 86.7 80.9 |
YKK560-12 YKK560-12 YKK560-12 |
500/6000 500/6000 500/6000 |
|
|
700DT-A83 |
595 |
3982 5906 6941 |
30.2 24.6 19.3 |
423.0 460.4 458.1 |
77.4 85.9 79.6 |
YKK560-10 YKK560-10 YKK560-10 |
560/6000 630/6000 630/6000 |
|
496 |
3319 4923 5786 |
21.0 17.1 13.4 |
245.1 266.8 265.2 |
77.4 85.9 79.6 |
YKK500-12 YKK560-12 YKK560-12 |
315/6000 355/6000 355/6000 |
|
|
700DT-B78 |
595 |
4086 6052 7233 |
21.9 18.7 15.0 |
327.0 364.6 358.0 |
74.5 84.5 82.5 |
YKK500-10 YKK560-10 YKK500-10 |
450/6000 500/6000 450/6000 |
|
495 |
3399 5035 6017 |
15.2 12.9 10.4 |
188.8 209.2 206.5 |
74.5 84.5 82.5 |
YKK500-12 YKK500-12 YKK500-12 |
250/6000 280/6000 280/6000 |
|
|
600DT-A82 |
595 |
3300 5300 5600 |
27.8 21.7 20.4 |
343.2 362.9 368.2 |
72.8 86.3 84.5 |
YKK560-10 YKK560-10 YKK560-10 |
500/6000 500/6000 500/6000 |
|
490 |
2718 4365 4612 |
18.9 14.7 13.8 |
192.2 202.5 205.1 |
72.8 86.3 84.5 |
YKK500-12 YKK500-12 YKK500-12 |
280/6000 280/6000 280/6000 |
|
|
500DT-A76 |
595 |
2056 2985 3881 |
27.9 23.6 17.2 |
226.0 249.7 261.1 |
69.1 76.8 69.6 |
YKK500-10 YKK500-10 YKK500-10 |
315/6000 315/6000 355/6000 |
|
490 |
1693 2458 3196 |
18.9 16.0 11.7 |
126.1 139.4 146.3 |
69.1 76.8 69.6 |
YKK450-12 YKK450-12 YKK450-12 |
185/6000 185/6000 185/6000 |
|
|
500DT-A70 |
742 |
2890 3729 4399 |
32.5 27.9 21.3 |
409.9 428.6 427.0 |
71.8 76.0 68.7 |
YKK500-8 YKK500-8 YKK500-8 |
450/6000 500/6000 500/6000 |
|
590 |
2298 2965 3498 |
20.5 17.6 13.5 |
205.6 215.2 215.4 |
71.8 76.0 68.7 |
YKK450-10 YKK450-10 YKK450-10 |
250/6000 250/6000 250/6000 |
|
|
400DT-A65 |
742 |
1717 2512 3330 |
31.1 27.2 20.2 |
205.3 232.2 238.4 |
70.8 80.1 76.8 |
YKK450-8 YKK450-8 YKK450-8 |
280/6000 315/6000 315/6000 |
|
590 |
1365 1997 2648 |
19.7 17.2 12.8 |
103.4 116.7 120.1 |
70.8 80.1 76.8 |
YKK450-10 YKK450-10 YKK450-10 |
185/6000 185/6000 185/6000 |
|
|
350DT-A78 |
740 |
1332 2431 2865 |
51.1 44.5 39.6 |
289.6 377.7 408.7 |
64.0 78.0 75.6 |
Y450-8 Y450-8 Y450-8 |
400/6000 500/6000 500/6000 |
|
590 |
1062 1938 2284 |
32.5 28.3 25.2 |
146.9 191.5 207.3 |
64.0 78.0 75.6 |
Y450-10 Y450-10 Y450-10 |
185/6000 250/6000 280/6000 |
|
|
300DT-A60 |
989 |
1158 1762 2384 |
52.0 46.1 35.5 |
228.3 272.7 305.6 |
71.8 81.1 75.4 |
Y400-6 Y400-6 Y400-6 |
315/6000 355/6000 400/6000 |
|
742 |
869 1322 1789 |
29.3 25.9 20.0 |
96.5 114.9 129.2 |
71.8 81.1 75.4 |
Y355M1-8 Y355M2-8 Y355M2-8 |
132/380 160/380 160/380 |
|
|
250DT-A75 |
980 |
600 1100 1480 |
97.5 92.0 83.2 |
255.7 362.6 443.6 |
62.3 76.0 75.6 |
Y400-6 Y400-6 Y400-6 |
355/6000 500/6000 560/6000 |
|
730 |
447 819 1102 |
54.1 51.0 46.2 |
105.7 149.7 183.4 |
62.3 76.0 75.6 |
Y355M1-8 Y355L2-8 Y400-8 |
132/380 200/380 250/6000 |
|
|
250DT-A45 |
980 |
442 666 804 |
27.0 24.3 19.8 |
63.1 74.4 79.4 |
59.3 68.2 2.8 |
Y315S-6 Y315M-6 Y315M-6 |
75/380 90/380 90/380 |
|
730 |
329 496 599 |
15.0 13.5 11.0 |
26.1 30.8 32.9 |
59.3 68.2 62.8 |
Y250M-8 Y280S-8 Y280M-8 |
30/380 37/380 45/380 |
|
|
200DT-B45 |
990 |
275 548 639 |
30.1 25.3 22.6 |
35.8 46.7 50.5 |
62.9 80.8 77.8 |
Y280M-6 Y315S-6 Y315S-6 |
55/380 75/380 75/380 |
|
730 |
203 404 471 |
16.4 13.8 12.3 |
14.4 18.8 20.3 |
62.9 80.8 77.8 |
Y225M-8 Y250M-8 Y250M-8 |
22/380 30/380 30/380 |
|
|
150DT-A60 |
1480 |
329 576 704 |
150.0 136.3 129.1 |
232.0 308.0 349.9 |
57.9 69.4 70.7 |
Y355L2-4 YKK400-4 YKK400-4 |
315/380 355/6000 400/6000 |
|
980 |
218 381 466 |
65.8 59.8 56.6 |
67.4 89.4 101.6 |
57.9 69.4 70.7 |
Y315M-6 Y315L2-6 Y315L2-6 |
90/380 132/380 132/380 |
|
|
730 |
162 284 347 |
36.5 33.2 31.4 |
27.8 37.0 42.0 |
57.9 69.4 70.7 |
Y280S-8 Y315S-8 Y315S-8 |
37/380 55/380 55/380 |
|
|
150DT-B55 |
990 |
280 517 630 |
53.7 48.0 45.9 |
64.8 88.3 100.8 |
63.2 76.5 78.1 |
Y315M-6 Y315L1-6 Y315L2-6 |
90/380 110/380 132/380 |
|
740 |
209 387 471 |
30.0 26.8 25.7 |
27.0 36.9 42.2 |
63.2 76.5 78.1 |
Y280S-8 Y315S-8 Y315S-8 |
37/380 55/380 55/380 |
|
|
150DT-A50 |
980 |
123 221 279 |
44.6 40.1 37.2 |
27.6 36.9 43.4 |
54.1 65.4 65.2 |
Y250M-6 Y280M-6 Y280M-6 |
37/380 55/380 55/380 |
|
730 |
92 165 208 |
24.7 22.3 20.6 |
11.4 15.3 17.9 |
54.1 65.4 65.2 |
Y225S-8 Y225M-8 Y250M-8 |
18.5/380 22/380 30/380 |
|
|
150DT-A40 |
1490 |
260 440 503 |
61.2 53.8 50.7 |
68.8 88.2 95.4 |
63.0 73.1 72.8 |
Y280M-4 Y315S-4 Y315M-4 |
90/380 110/380 132/380 |
|
980 |
171 289 331 |
26.5 23.3 21.9 |
19.6 25.1 27.1 |
63.0 73.1 72.8 |
Y225M-6 Y250M-6 Y250M-6 |
30/380 37/380 37/380 |
|
|
100DT-A60 |
1480 |
151 254 303 |
145.0 136.6 129.9 |
130.7 167.2 185.1 |
45.6 56.5 57.9 |
Y315L2-4 Y355M1-4 Y355M2-4 |
200/380 220380 250/380 |
|
980 |
100 168 201 |
63.6 59.9 57.0 |
38.0 48.5 53.9 |
45.6 56.5 57.9 |
Y280M-6 Y315S-6 Y315S-6 |
55/380 75/380 75/380 |
|
|
100DT-A50 |
1480 |
180 300 360 |
100.2 95.0 91.6 |
85.7 113.3 131.7 |
57.3 68.5 68.2 |
Y315S-4 Y315L1-4 Y315L2-4 |
110/380 160/380 185/380 |
|
980 |
119 199 238 |
43.9 41.7 40.2 |
24.8 33.0 38.2 |
57.3 68.5 68.2 |
Y250M-6 Y280S-6 Y280M-6 |
37/380 45/380 55/380 |
|
|
100DT-A45 |
1480 |
100 195 228 |
83.5 71.6 66.1 |
46.4 64.8 71.4 |
49.0 58.7 57.5 |
Y250M-4 Y280S-4 Y280M-4 |
55/380 75/380 90/380 |
|
980 |
66 129 151 |
36.6 31.4 29.0 |
13.4 18.8 20.7 |
49.0 58.7 57.5 |
Y200L1-6 Y200L2-6 Y225M-6 |
18.5/380 22/380 30/380 |
|
|
100DT-B40 |
1480 |
129 219 268 |
61.0 56.1 53.6 |
37.7 48.7 55.6 |
56.9 68.7 70.4 |
Y250M-4 Y280S-4 Y280S-4 |
55/380 75/380 75/380 |
|
970 |
85 144 176 |
26.2 24.1 23.0 |
10.7 13.8 15.7 |
56.9 68.7 70.4 |
Y180L-6 Y200L2-6 Y200L2-6 |
15/380 22/380 22/380 |
|
|
100DT-A35 |
1480 |
163 278 323 |
45.9 41.5 39.2 |
33.5 43.7 47.1 |
60.9 71.9 73.2 |
Y225M-4 Y250M-4 Y280S-4 |
45/380 55/380 75/380 |
|
970 |
107 182 212 |
19.7 17.8 16.8 |
9.4 12.3 13.3 |
60.9 71.9 73.2 |
Y180L-6 Y200L1-6 Y200L1-6 |
15/380 18.5/380 18.5/380 |
|
|
80DT-A36 |
1480 |
86 151 167 |
47.1 42.0 39.9 |
23.3 28.5 29.3 |
47.4 60.7 62.0 |
Y200L-4 Y225S-4 Y225S-4 |
30/380 37/380 37/380 |
|
970 |
56 99 109 |
20.2 18.0 17.1 |
6.5 8.0 8.2 |
47.4 60.7 62.0 |
Y160L-6 Y180L-6 Y180L-6 |
11/380 15/380 15/380 |
|
|
65DT-A40 |
1480 |
71 141 159 |
60.1 54.4 51.6 |
24.9 33.6 36.0 |
46.7 62.1 62.1 |
Y225S-4 Y225M-4 Y250M-4 |
37/380 45/380 55/380 |
|
970 |
47 92 104 |
25.8 23.4 22.2 |
7.1 9.4 10.1 |
46.7 62.1 62.1 |
Y160L-6 Y180L-6 Y180L-6 |
11/380 15/380 15/380 |
|
|
65DT-A30 |
1470 |
44 79 99 |
35.6 32.6 30.7 |
9.1 12.8 15.4 |
46.7 54.6 53.8 |
Y160L-4 Y180M-4 Y180L-4 |
15/380 18.5/380 22/380 |
|
960 |
29 51 64 |
15.2 13.9 13.1 |
2.6 3.5 4.2 |
46.7 54.6 53.8 |
Y132M2-6 Y132M2-6 Y160M-6 |
5.5/380 5.5/380 7.5/380 |
|
|
50DT-A50 |
1480 |
57 91 111 |
110.7 105.5 99.8 |
50.7 60.9 66.9 |
33.9 42.9 45.1 |
Y280S-4 Y280M-4 Y280M-4 |
75/380 90/380 90/380 |
|
980 |
38 60 74 |
48.5 46.3 43.8 |
14.8 17.6 19.6 |
33.9 42.9 45.1 |
Y200L2-6 Y225M-6 Y225M-6 |
22/380 30/380 30/380 |
|
|
50DT-A45 |
1480 |
45.7 72.8 93.6 |
81.0 74.1 68.1 |
26.2 31.4 35.9 |
38.4 46.8 48.4 |
Y225S-4 Y225M-4 Y250M-4 |
37/380 45/380 55/380 |
|
970 |
30.0 47.7 61.3 |
34.8 31.8 29.3 |
7.4 8.8 10.1 |
38.4 46.8 48.4 |
Y160L-6 Y180L-6 Y180L-6 |
11/380 15/380 15/380 |
|
|
50DT-B40 |
1480 |
51.9 90.6 100.2 |
61.5 55.3 53.5 |
20.7 25.3 26.5 |
42.0 54.0 55.0 |
Y200L-4 Y225S-4 Y225S-4 |
30/380 37/380 37/380 |
|
970 |
34.0 59.4 65.7 |
26.4 23.8 23.0 |
5.8 7.1 7.5 |
42.0 54.0 55.0 |
Y160L-6 Y160L-6 Y180L-6 |
11/380 11/380 15/380 |
|
|
50DT-A30 |
1460 |
34 55 78 |
35.1 30.7 25.2 |
7.5 9.5 11.8 |
43.1 48.5 45.4 |
Y160M-4 Y160L-4 Y180M-4 |
11/380 15/380 18.5/380 |
|
960 |
22 36 51 |
15.2 13.3 10.9 |
2.1 2.7 3.3 |
43.1 48.5 45.4 |
Y132M1-6 Y132M2-6 Y132M3-6 |
4/380 5.5/380 5.5/380 |
|
|
40DT-A25[a] |
2950 |
35.5 58.8 74.7 |
88.6 73.5 60.8 |
20.7 27.7 31.2 |
41.3 42.5 39.6 |
Y200L1-2 Y200L2-2 Y200L3-2 |
30/380 37/380 45/380 |
|
1440 |
17.3 28.7 36.5 |
21.1 17.5 14.5 |
2.4 3.2 3.6 |
41.3 42.5 39.6 |
Y112M-4 Y132S-4 Y132S-4 |
4/380 5.5/380 5.5/380 |
|
|
40DT-B20 |
2930 |
16.6 33.3 37.1 |
57.5 49.9 47.1 |
6.4 8.5 9.2 |
40.9 53.0 52.0 |
Y160M1-2 Y160M2-2 Y160M3-2 |
11/380 15/380 15/380 |
|
1430 |
8.1 16.3 18.1 |
13.7 11.9 11.2 |
0.7 1.0 1.1 |
40.9 53.0 52.0 |
Y90L-4 Y100L1-4 Y100L1-4 |
1.5/380 2.2/380 2.2/380 |
|
|
40DT-A19 |
2930 |
16.3 30.0 34.9 |
57.1 54.9 53.7 |
6.5 8.1 8.7 |
39.2 55.4 58.8 |
Y160M1-2 Y160M2-2 Y160M2-2 |
11/380 15/380 15/380 |
|
1400 |
7.8 14.3 16.7 |
13.0 12.5 12.3 |
0.7 0.9 1.0 |
39.2 55.4 58.8 |
Y90L-4 Y90L-4 Y100L1-4 |
1.5/380 1.5/380 2.2/380 |
|
|
40DT-A17 |
2900 |
9.4 17.9 23.4 |
44.6 42.7 39.3 |
3.4 4.2 4.8 |
33.2 49.5 52.4 |
Y132S1-2 Y132S2-2 Y132S2-2 |
5.5/380 7.5/380 7.5/380 |
|
1400 |
4.6 8.6 11.3 |
10.4 10.0 9.2 |
0.4 0.5 0.5 |
33.2 49.5 52.4 |
Y802-4 Y90S-4 Y90S-4 |
0.75/380 1.1/380 1.1/380 |
|
|
25DT-A25 |
1440 |
9.6 17.8 19.9 |
21.6 16.6 13.9 |
1.7 2.1 2.2 |
33.2 38.0 33.8 |
Y100L2-4 Y112M-4 Y112M-4 |
3/380 4/380 4/380 |
|
910 |
6.0 11.2 12.5 |
8.6 6.6 5.5 |
0.4 0.5 0.6 |
33.2 38.0 33.8 |
Y90S-6 Y90L-6 Y90L-6 |
0.75/380 1.1/380 1.1/380 |
|
|
25DT-A15 |
2900 |
9.2 17.1 19.3 |
34.4 29.5 27.1 |
2.6 3.3 3.5 |
32.7 41.8 40.8 |
Y132S1-2 Y132S1-2 Y132S1-2 |
5.5/380 5.5/380 5.5/380 |
|
1390 |
4.4 8.2 9.3 |
7.9 6.8 6.2 |
0.3 0.4 0.4 |
32.7 41.8 40.8 |
Y801-4 Y802-4 Y802-4 |
0.55/380 0.75/380 0.75/380 |
|
聯系人：李經理 15369173235
電話/傳真：0311-89285493
郵箱：2219621880@qq.com
網址：http://www.ziy800.com
地址：河北省石家莊市裕華區南二環東路128號眾美綠都2-1號商業樓0107號
版權所有：石家莊第一水泵廠有限公司
