材料特點：
金屬材料
以抗磨損為主的金屬材料
以抗磨蝕為主的金屬材料
及抗磨損又抗磨蝕的金屬材料
使用特點：
效率高
壽命長
運行平穩

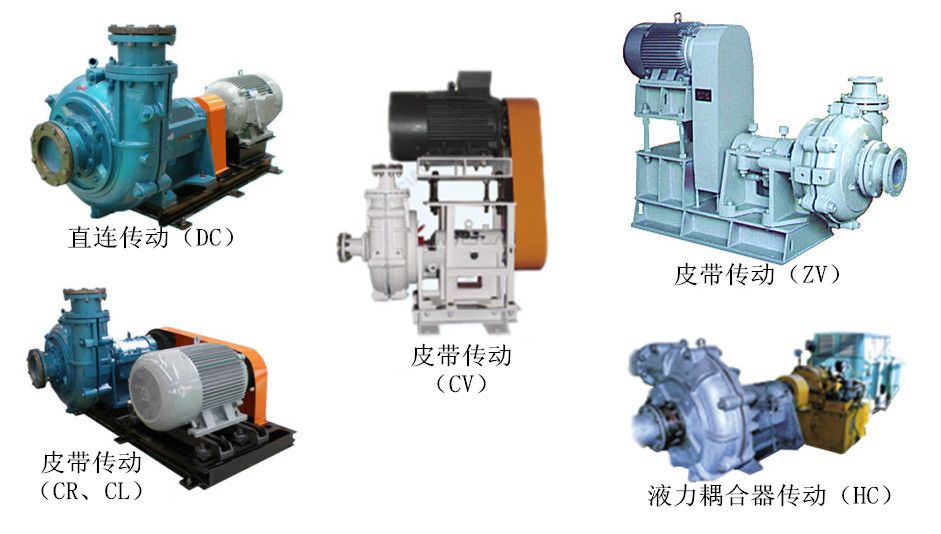

傳動方式：
直連傳動(DC)
液力耦合器傳動(HC)
皮帶傳動(CR、CL、ZV、CV)
結構特點
泵頭結構：
泵體采用雙層泵殼機構
雙殼泵外殼結構為垂直中開式
出水口位置可按45o 的間隔，旋轉8個不同安裝使用
托架結構：
水平中開式
懸臂式
軸封形式：
副葉輪動力密封+填料密封
填料密封
機械密封
出口直徑分為：
350mm、300mm、250mm、200mm、150mm
100mm、80mm、 65mm、 50mm、 40mm

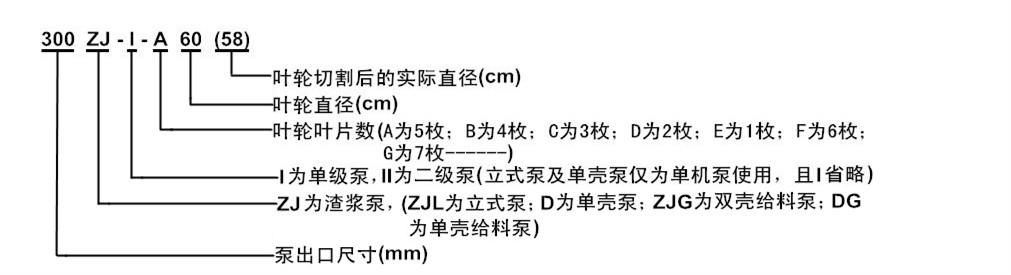

ZJ 系列渣漿泵型號意義
ZJ 系列渣漿泵主要技術參數
Performance Parameter Data of ZJ Slurry Pump
|
型號 Type |
允許配帶 最大功率 Allowable Max. Power of ass. Motor(Kw) |
清水性能 Clear Water Performance |
間隔通過 最大粒徑 Handled Particle Dia. Max. (mm) |
泵重 Pump Weight (Kg) |
||||
|
流量 Q Capacity (m3/h) |
揚程 H Head (m) |
轉速n Speed (r/min) |
最高 效率 Max.eff. (%) |
氣蝕 余量 (NPSH)r (m) |
||||
|
350ZJ-I-F100 |
560 |
526-2339 |
14.9-62.8 |
300-590 |
77.6 |
4.4 |
96 |
5465 |
|
350ZJ-I-C104 |
560 |
1335-3300.6 |
36.6-66.9 |
490-590 |
77.6 |
7.3 |
180 |
5465 |
|
350ZJ-I-C100 |
710 |
834-3502 |
11.1-60.0 |
300-593 |
73.0 |
7.4 |
160 |
7120 |
|
350ZJ-I-A85 |
710 |
1025-3741 |
12.3-62.3 |
400-742 |
77.2 |
10.5 |
100 |
5461 |
|
350ZJ-I-A80 |
630 |
837-3575 |
8.4-56.4 |
400-742 |
75.7 |
10.5 |
92.8 |
4920 |
|
300ZJ-I-A100 |
450 |
464-1826 |
15.3-65.2 |
300-590 |
81.1 |
3.0 |
88 |
5265 |
|
300ZJ-I-A95 |
400 |
441-1735 |
13.8-58.8 |
300-590 |
78.1 |
3.0 |
88 |
5220 |
|
300ZJ-I-A90 |
560 |
505-1844 |
21.2-79.9 |
400-730 |
82.8 |
3.9 |
85 |
5005 |
|
300ZJ-I-C90 |
400 |
604-2392 |
10.9-50.9 |
300-590 |
78.6 |
3.6 |
160 |
6290 |
|
300ZJ-I-A85 |
450 |
477-1742 |
18.9-71.3 |
400-730 |
79.8 |
3.8 |
85 |
4965 |
|
300ZJ-I-A70 |
630 |
635-2333 |
16.0-76.8 |
490-980 |
80.4 |
3.9 |
92 |
3560 |
|
300ZJ-I-A65 |
500 |
589-2166 |
13.8-66.2 |
490-980 |
77.4 |
3.7 |
92 |
3531 |
|
300ZJ-I-A56 |
250 |
395-1568 |
9.7-46.0 |
490-980 |
80.9 |
3.5 |
96 |
3030 |
|
250ZJ-I-A103 |
560 |
402-1573 |
29.7-110.5 |
400-730 |
74.5 |
2.8 |
69 |
5085 |
|
250ZJ-I-A96 |
560 |
403-1466 |
25.4-93.7 |
400-730 |
77.8 |
3.5 |
69 |
5035 |
|
250ZJ-I-A90 |
450 |
378-1374 |
22.3-82.4 |
400-730 |
73.8 |
3.4 |
69 |
4980 |
|
250ZJ-I-A85 |
800 |
376-1504 |
30.1-128.7 |
490-980 |
76.5 |
3.5 |
76 |
4530 |
|
250ZJ-I-A83 |
800 |
367-1469 |
28.7-122.7 |
490-980 |
75.5 |
3.5 |
76 |
4514 |
|
250ZJ-I-A80 |
710 |
354-1416 |
26.7-114.0 |
490-980 |
73.5 |
3.4 |
76 |
4490 |
|
250ZJ-I-C80 |
450 |
451-1790 |
7.4-38.3 |
300-592 |
75.1 |
3.3 |
144 |
5203 |
|
250ZJ-I-A78 |
630 |
415-1796 |
21.1-102.5 |
490-980 |
71.5 |
3.2 |
76 |
4474 |
|
250ZJ-I-A75 |
560 |
300-1480 |
20.8-97.5 |
490-980 |
77.5 |
3.0 |
72 |
3480 |
|
250ZJ-I-A73 |
500 |
292-1441 |
19.7-92.4 |
490-980 |
76.5 |
3.0 |
72 |
3466 |
|
250ZJ-I-A70 |
450 |
280-1381 |
18.1-84.9 |
490-980 |
74.5 |
2.9 |
72 |
3446 |
|
250ZJ-I-A68 |
450 |
272-1342 |
17.1-80.1 |
490-980 |
73.5 |
2.7 |
72 |
3432 |
|
250ZJ-I-A65 |
315 |
299-1249 |
15.4-71.0 |
490-980 |
76.9 |
3.0 |
72 |
3020 |
|
250ZJ-I-A63 |
315 |
290-1211 |
14.4-66.7 |
490-980 |
75.9 |
3.0 |
72 |
3008 |
|
250ZJ-I-A60 |
280 |
276-1153 |
13.1-60.5 |
490-980 |
73.9 |
2.8 |
72 |
2991 |
|
200ZJ-I-A85 |
560 |
221-907 |
32.0-133.7 |
490-980 |
70.5 |
2.8 |
54 |
4110 |
|
200ZJ-I-A75 |
355 |
225-900 |
22.8-102.9 |
490-980 |
74.1 |
3.0 |
56 |
3070 |
|
200ZJ-I-A73 |
355 |
219-876 |
21.6-97.5 |
490-980 |
73.1 |
3.0 |
56 |
3056 |
|
200ZJ-I-A70 |
315 |
205-976 |
19.4-86.41 |
490-980 |
75.6 |
2.8 |
56 |
2465 |
|
200ZJ-I-A68 |
315 |
199-948 |
8.3-81.5 |
490-980 |
74.6 |
2.8 |
56 |
2453 |
|
200ZJ-I-A65 |
250 |
235-950 |
16.4-72.0 |
490-980 |
79.6 |
2.5 |
62 |
2323 |
|
200ZJ-I-A63 |
250 |
228-921 |
15.4-67.6 |
490-980 |
78.6 |
2.5 |
62 |
2311 |
|
200ZJ-I-A60 |
185 |
218-870 |
13.9-62.0 |
490-980 |
83.5 |
2.5 |
62 |
2223 |
|
200ZJ-I-A58 |
185 |
211-841 |
13.0-57.9 |
490-980 |
82.5 |
2.5 |
62 |
2214 |
|
200ZJG-I-B45 |
132 |
85-538 |
10.5-72.9 |
700-1480 |
68.0 |
10.7 |
28 |
1531 |
|
150ZJ-I-A71 |
220 |
142-552 |
21.8-93.8 |
490-980 |
69.8 |
2.4 |
48 |
2263 |
|
150ZJ-I-A70 |
185 |
93-401 |
20.2-91.2 |
490-980 |
62.3 |
2.0 |
37 |
2245 |
|
150ZJ-I-A65 |
200 |
150-600 |
17.4-75.7 |
490-980 |
70.8 |
2.5 |
48 |
2223 |
|
150ZJ-I-A63 |
185 |
146-582 |
16.3-71.1 |
490-980 |
69.8 |
2.5 |
48 |
2211 |
|
150ZJ-I-A60 |
160 |
135-550 |
14.7-63.5 |
490-980 |
75.9 |
2.5 |
48 |
2203 |
|
150ZJ-I-A58 |
132 |
131-532 |
13.7-59.3 |
490-980 |
74.9 |
2.5 |
48 |
2033 |
|
150ZJ-I-C58 |
160 |
134-596 |
12.8-61.0 |
490-980 |
69.1 |
2.0 |
75 |
2063 |
|
150ZJ-I-A57 |
110 |
95-427 |
13.2-56.3 |
490-980 |
67.8 |
1.8 |
32 |
2023 |
|
150ZJ-I-A55 |
110 |
124-504 |
12.3-53.4 |
490-980 |
72.9 |
2.3 |
48 |
2019 |
|
150ZJ-I-A50 |
75 |
115-460 |
9.5-43.1 |
490-980 |
76.8 |
2.5 |
48 |
1735 (1648) |
|
150ZJ-I-A48 |
75 |
111-442 |
8.7-39.7 |
490-980 |
75.8 |
2.5 |
48 |
1728 (1641) |
|
150ZJG-I-B45 |
110 |
105-458 |
10.9-72.5 |
700-1480 |
65.4 |
7.3 |
25.6 |
1576 (1433) |
|
150ZJ-I-C42 |
132 |
142-550 |
12.1-62.8 |
700-1480 |
77.1 |
2.2 |
69 |
1605 (1518) |
|
100ZJ-I-A50 |
160 |
85-360 |
20.5-100.2 |
700-1480 |
69.6 |
2.5 |
34 |
1475 (1388) |
|
100ZJ-I-A46 |
132 |
79-331 |
17.3-84.8 |
700-1480 |
67.6 |
2.3 |
34 |
1461 (1374) |
|
100ZJ-I-A42 |
90 |
66-275 |
14.7-70.8 |
700-1480 |
71.0 |
2.5 |
35 |
1075 (1021) |
|
100ZJ-I-A39 |
75 |
61-255 |
12.6-61.0 |
700-1480 |
39.0 |
2.4 |
35 |
1064 (1010) |
|
100ZJ-I-B42 |
90 |
83-365 |
12.7-66.8 |
700-1480 |
71.6 |
2.5 |
40 |
1085 (1031) |
|
100ZJG-I-B42 |
75 |
45-205 |
9.7 |
700-1480 |
63.2 |
1.8 |
18 |
1080 (990) |
|
100ZJ-I-A36 |
55 |
61-245 |
49.5 |
700-1480 |
71.6 |
2.0 |
32 |
1010 (956) |
|
100ZJ-I-A33 |
45 |
56-225 |
8.2-41.6 |
700-1480 |
69.6 |
1.8 |
32 |
1003 (949) |
|
80ZJ-I-A52 |
160 |
51-242 |
22.1-109.8 |
700-1480 |
56.3 |
2.1 |
21 |
1465 (1378) |
|
80ZJ-I-A42 |
75 |
61-204 |
14.4-70.4 |
700-1480 |
66.7 |
2.5 |
24 |
1053 (963) |
|
80ZJ-I-A39 |
55 |
57-189 |
12.4-60.7 |
700-1480 |
64.7 |
2.4 |
24 |
1042 (952) |
|
80ZJ-I-A36 |
45 |
46-190 |
9.6-51.4 |
700-1480 |
67.7 |
2.5 |
24 |
980 (926) |
|
80ZJ-I-A33 |
37 |
43-174 |
8.0-43.2 |
700-1480 |
65.7 |
2.3 |
24 |
973 (919) |
|
65ZJ-I-A30 |
15 |
23-79 |
7.4-34.8 |
700-1460 |
63.5 |
2.0 |
19 |
504 (512) |
|
65ZJ-I-A27 |
11 |
20-71 |
6.0-28.2 |
700-1460 |
61.5 |
1.8 |
19 |
500 (508) |
|
50ZJ-I-A50 |
90 |
27-111 |
22.3-110.7 |
700-1480 |
45.1 |
3.0 |
13 |
1378 |
|
50ZJ-I-A46 |
55 |
23-94 |
17.9-85.8 |
700-1480 |
44.7 |
1.4 |
14 |
1082 (992) |
|
50ZJ-I-A33 |
18.5 |
12-54 |
7.7-42.5 |
700-1480 |
42.1 |
2.9 |
13 |
537 (545) |
|
40ZJ-I-A19 |
15 |
8.0-34.9 |
12.8-57.1 |
1430-2930 |
58.8 |
1.3 |
11 |
173 |
|
40ZJ-I-A17 |
7.5 |
4.5-23.4 |
9.1-44.6 |
1400-2900 |
52.4 |
2.5 |
11 |
121 (127) |
ZJ 型渣漿泵直連傳動安裝圖(單體底座)
